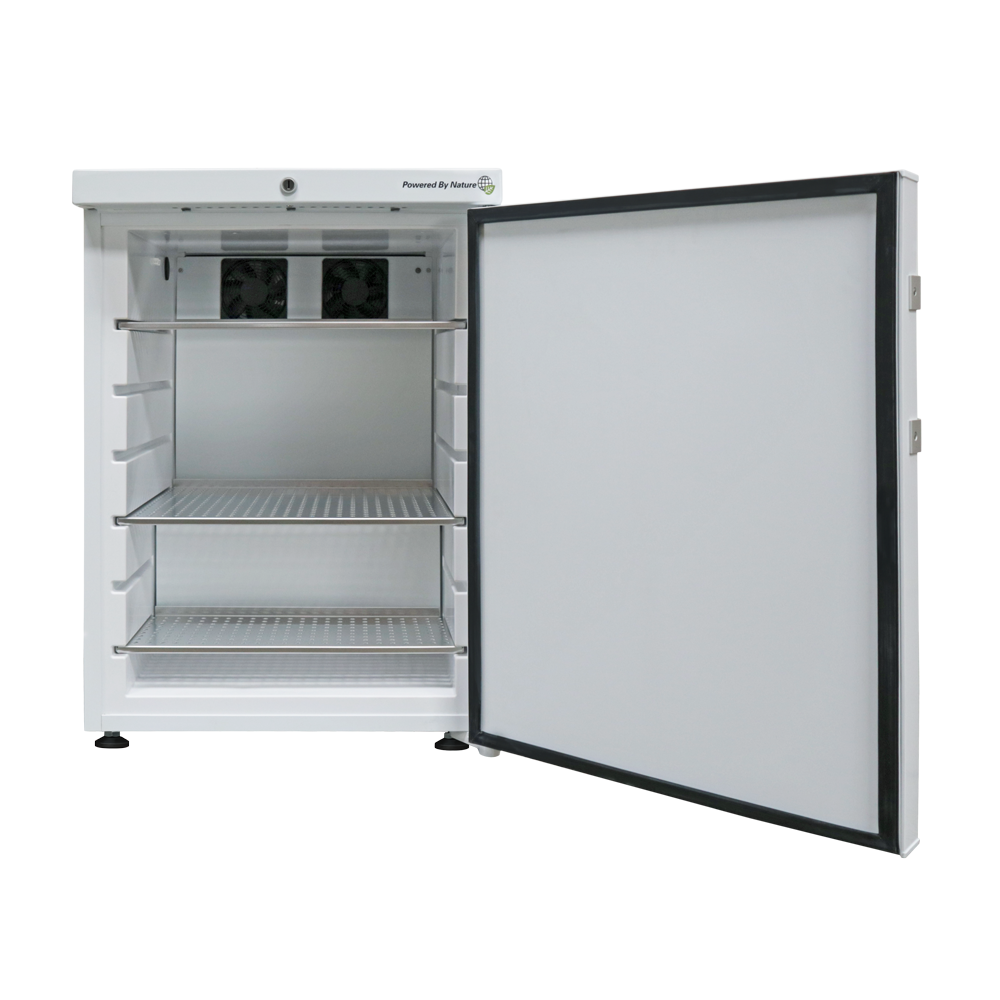

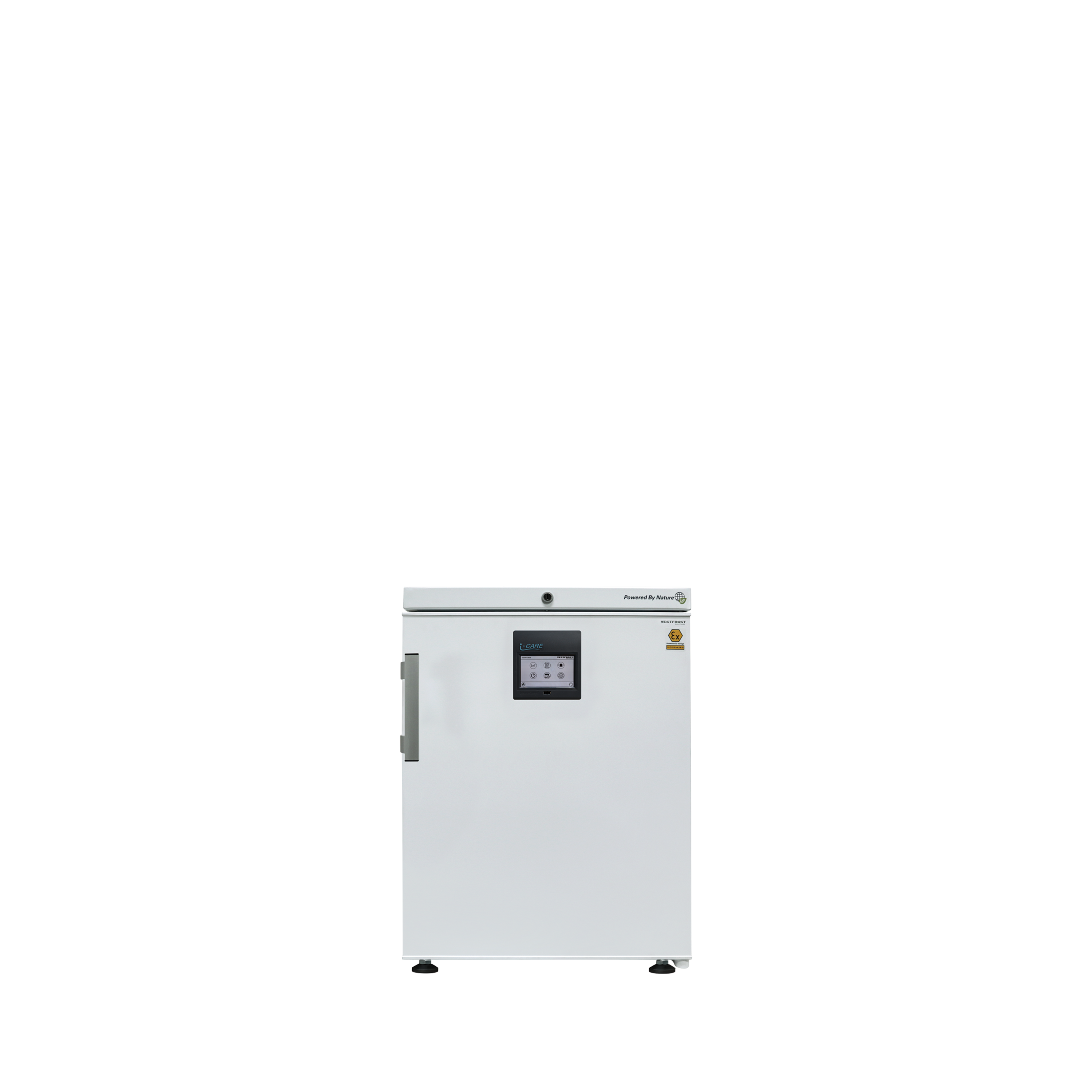

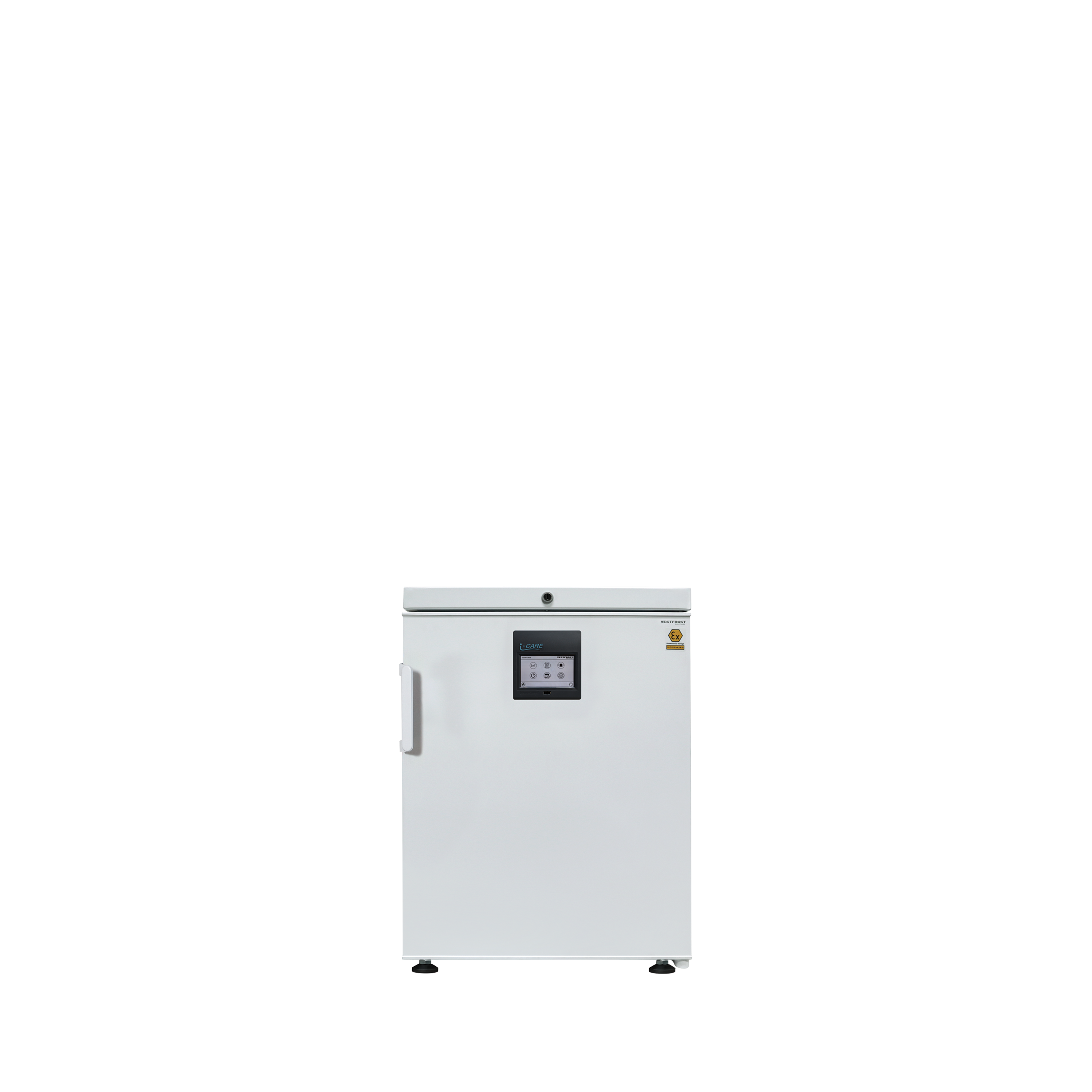

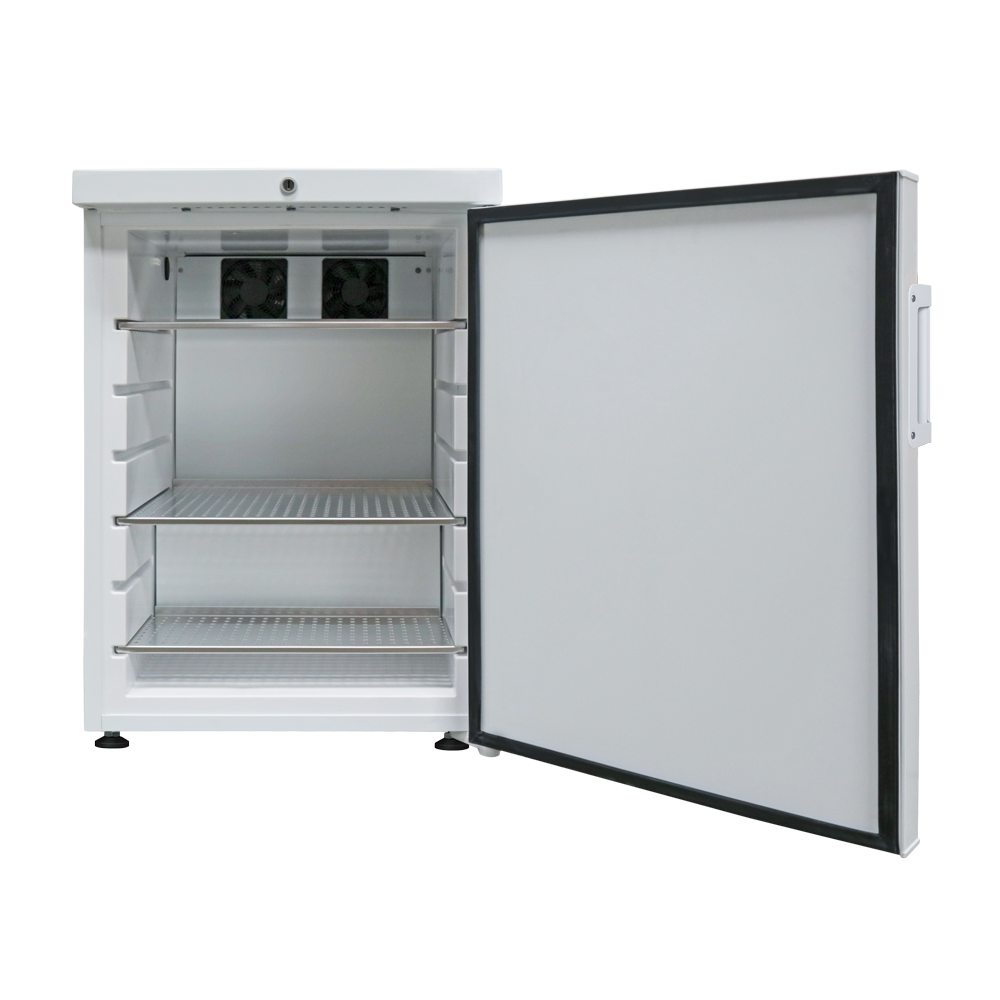

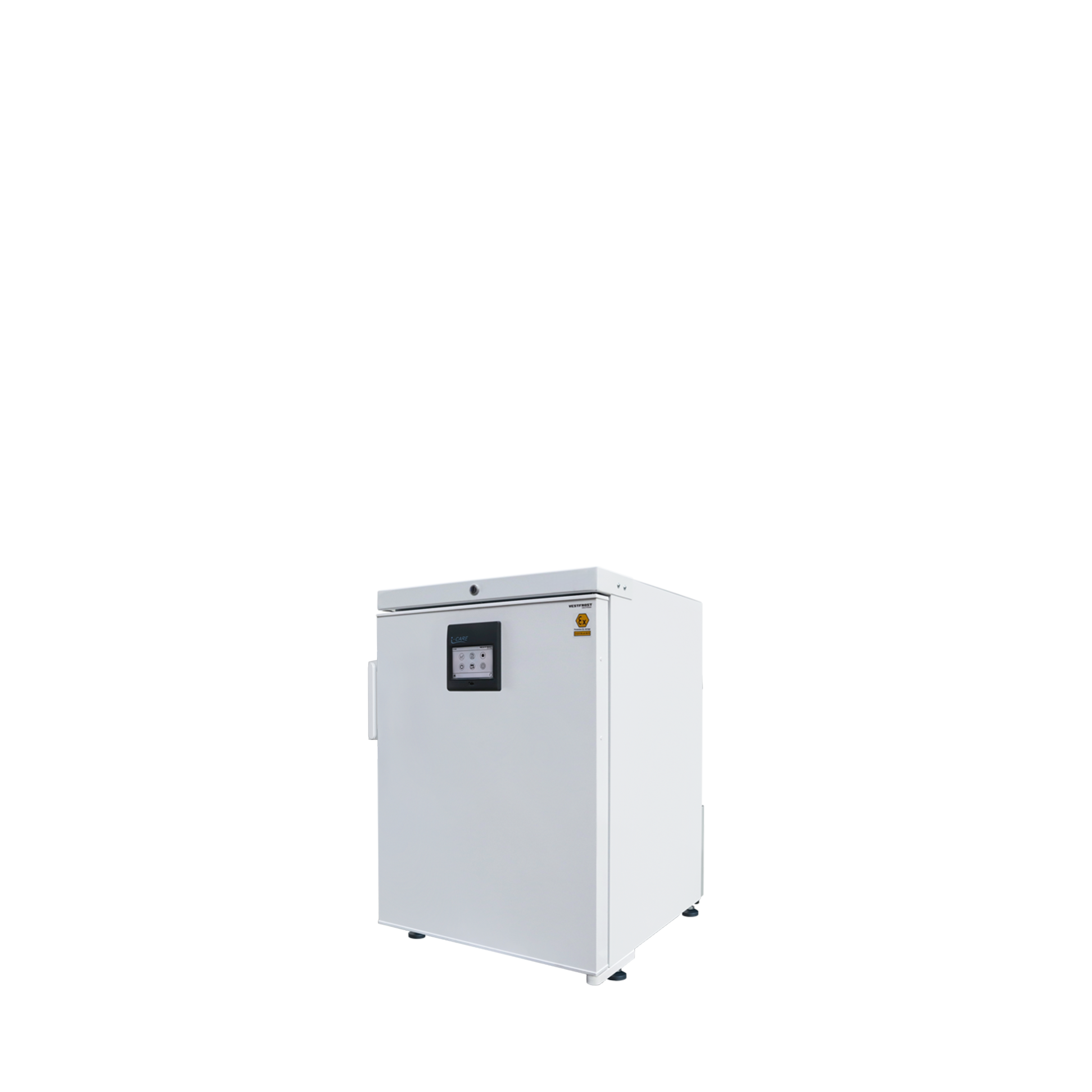

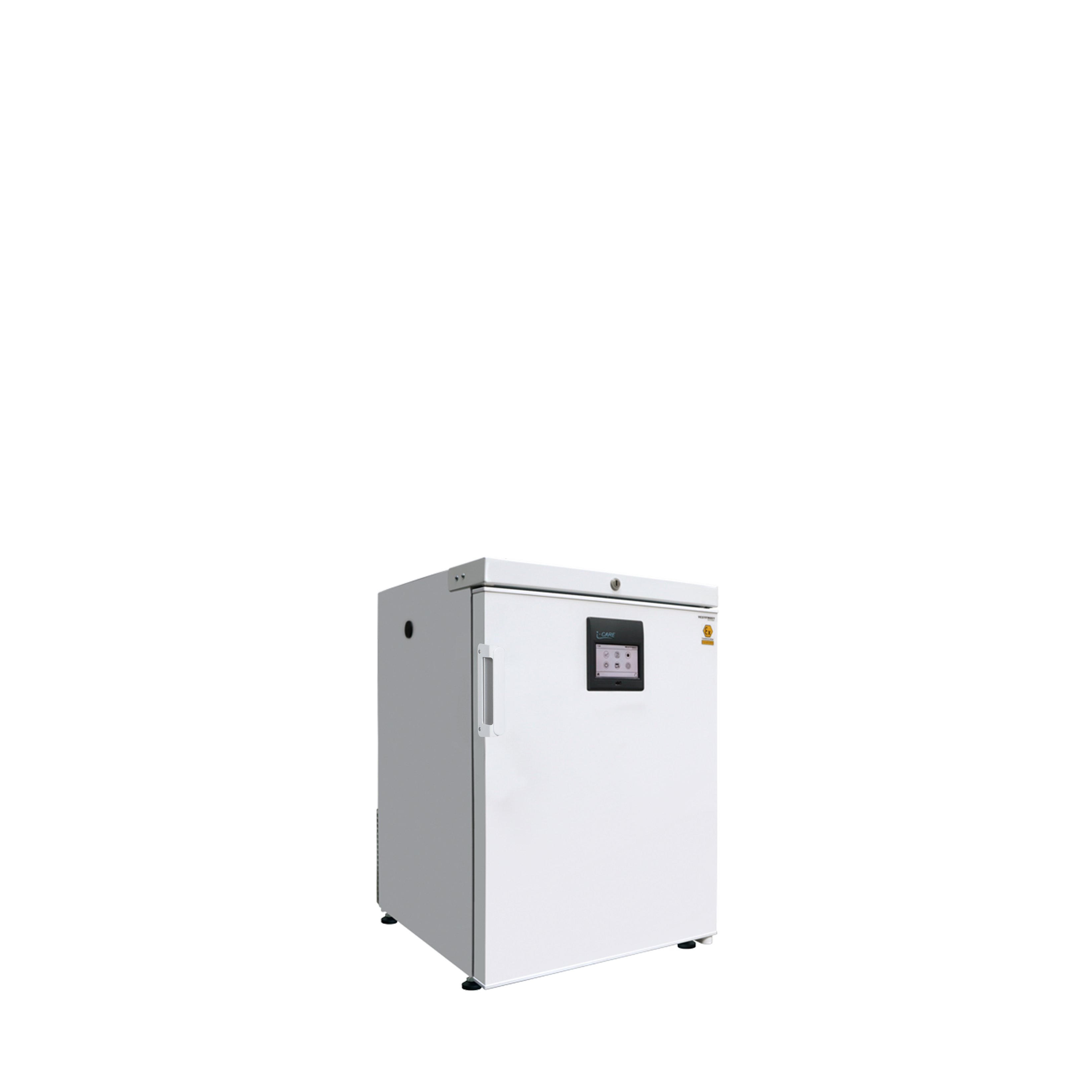

Undercounter refrigerator

R-138i


i-Care

R-138i

+2°C to +20°C Refrigerator

With a compact design, this undercounter fits perfectly beneath your work bench, providing a storage solution that is ideal for places where space is limited.

Featuring the ETR-System™ (Extended Temperature Range) the unit can operate within +2°C to +20°C, giving you flexibility to adjust the cooling to your specific needs, or to save energy reducing both operation costs & carbon emission. Our biomedical appliances offer a reliable solution for users seeking industry leading cooling performance and high operation stability.

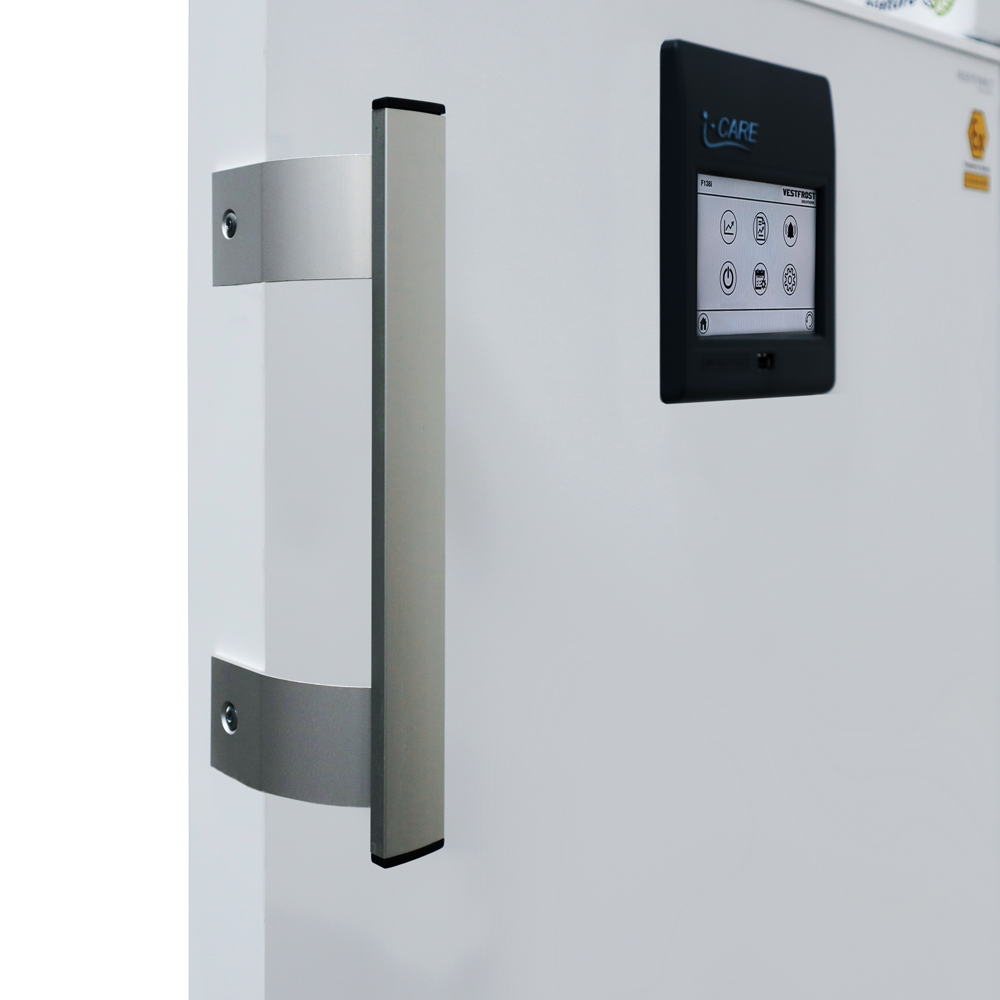

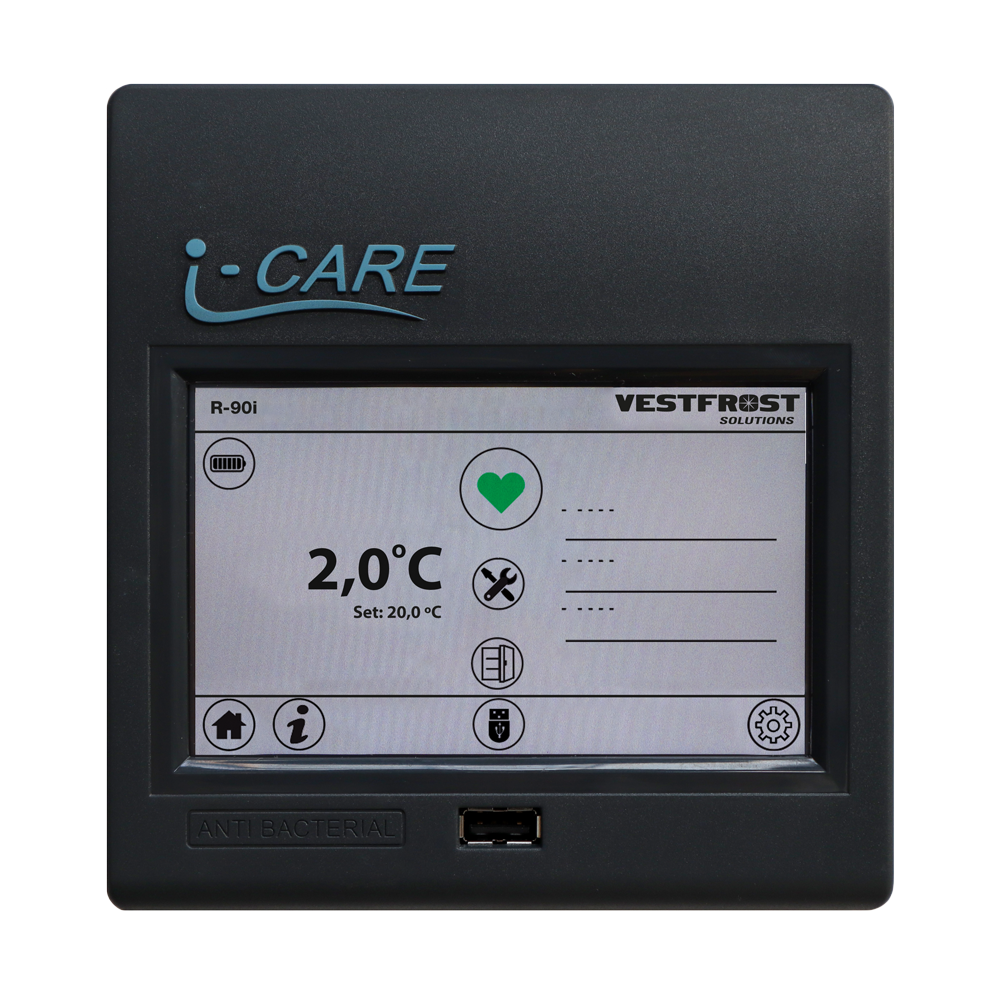

With the i-Care controller it has become much easier to access information, change settings, extract data and more. The controller features a 5 inch touchscreen with intuitive icons and easy to navigate menus. The i-Care controller makes complexity simple.

Operated by Adaptive Cooling Technology™ your Vestfrost biomedical appliance will always deliver efficient performance, by adapting the cooling power to match the situation. This means best in class cooldown, outstanding temperature stability, less noise and less energy consumption. With Adaptive Cooling Technology™ you get powerful performance where it matters.

Information is key to ensure proper storage of medicine & biological samples. The new i-Care series features a build-in datalogger, a live temperature graph and an event list, all of which provide you with a quick overview of the condition that your content is being stored at. The i-Care series gives you the information you need, to document the storage conditions of your content.
Get a quote

Get a quote for R-138i

Submit
Thank you for your interest. We have sent you a confirmation mail.
Specifications

Dimension 825x595x642 HxWxD mm
Dimension inner 676x475x495 HxWxD mm
Weight 56 / 45 gross/net
Package weight 11 kg
Material inner cabinet ABS Kg. gross/net
Material outer cabinet Painted steel Kg. gross/net
Insulation type Polyurethane with cyclopentane
Insulation thickness 50 mm
Type of packaging Cardboard, EPS, viny bag, wooden palet
Mobility 4 x Adjustable feet

Volume 138 / 117 Gross/net
Shelves 2
Half shelf 1

Safety thermostat
Lock
LED light
Battery backup
Porthole
Porthole size 20 mm
Dry contact
Reference bottle
Door closure
Door reversibility
Automatic hold 90°

High / Low temperature
Open door
Power failure
Probe failure

Voltage 220 V
Frequence 50 / 60 Hz
Max ambient 35 °C
Max Humidity 75 %
Test condition 20 °C

Temperature range +2 to +20 °C
0,4 °C
30 Minutes
108 Minutes
Noise 44 dB
Energy 24 hours 0,3 kWh/24h
Energy year 121,9 kWh/anno
Instant Power Consumption PD 0,080 / Stable 0,025 kW
Heat Rejection 46 W
0,59 W/m^2k

Refrigerant/amount R600a / 47 Type & gram
Number of compressors 1
Variable speed compressor
Internal air distribution (Type) Dynamic
Evaporator fan
Condensor fan
Number of probes 4
Defrost

Controller i-CARE
USB Connection Yes
Data connection MODBUS
Controller abilities Logging of data & alarms, touch screen
Controller languages EN, DE, FR
Log numbers More than a year
Temperature graph in controller
